Waterproof Metal Circular Push Pull Connectors

Name: Waterproof Metal Circular Push Pull Connectors
Brand: RAYMO
Price: 1 USD

Buy cheap Waterproof Metal Circular Push Pull Connectors product

Brand Name : RAYMO

Model Number : FGG.2KC.316.CLAD52Z

Certification : CE/ROHS/SGS/ISO:9001-2015

Place of Origin : SHENZHEN,CHINA

MOQ : 1 Piece/Pieces

Price : Negotiable

Payment Terms : T/T, Western Union, D/A, D/P,L/C, MoneyGram

Supply Ability : 5000Pieces/ Week

Delivery Time : 5-7working days

Packaging Details : Plastic Bag & Carton

Prct Name : IP68 Waterproof push pull connector

Model : FFG straight plug

Shell size : 0K,1K,2K,3K

Contact no. : 2-32 pins

Shell Color : Natural or Black shell

Insulator : PPS, PEEK

Gender : Male, Female

Contact type : Solder/PCB/90° PCB contacts

IP ranking : IP68

Cable assembled or not : Yes

Contact Now

Prct Description

RM-K Series 0K 1K 2K 3K series FGG Straight plug

Part No.:	FFG.2K.316.CLAD52Z/ RM-FGG-2KC-316JS52Z
Prct Description:	2K size connector, FGG straight plug, 16pin male contact, 52 cable collet, nut for a bend relief, natural chrome plated shell in brass

K series Push pull locking metal connector, cable to cable connector, free socket, inline connector

Main Futures
1	Waterproof Secure high performance push-pull Self-locking system
2	100% compatible with original Lemo connector
3	2-32pin available
4	can plated with white or black chrome
5	Available solder and PCB or right angle PCB contact.
6	360° EMC shield
7	Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach

Technical Characteristics
Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	55/175/21	Shielding (min)	> 95dB [ at 10 MHz], > 80 dB [ at 1 GHz]
IP Rating	IP 68	Endurance(shell)	≥5000 mating cycles

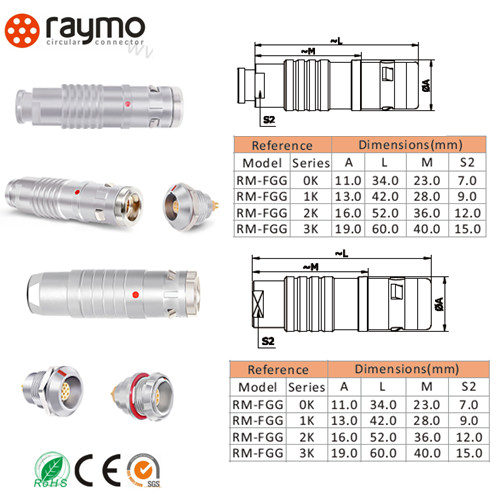

Waterproof Metal Circular Push Pull Connectors

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
0K	2	3	4	5	6	7	9
1K	2	3	4	5	6	7	8	10	12	14	16
2K	2	3	4	5	6	7	8	10	12	14	16	19
3K	3	4	6	8	9	10	12	14	14	16	18	21
3K	26	30	32

Our Company

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

Our Exhibition

2020.11	Electronica Munich, Germany
2019 9.24-9.26	Testing Expo, Shanghai
2018 11.12-11.15	Electronica Munich, Germany
2017 9.11-9.16	NAB Show,Netherlands
2016 4.11-4.15	HK Fair
2015 10.2-10.7	ICEEB, Brasil
2014 10.11-10.15	HK Fair
2014 4.11-4.15	HK Fair

Why Choose US?

100% compatible lemo& connector
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Help you save your cost
Fast delivery: 3-15 working days
Cable assembly offer,help you save prction time

Waterproof Metal Circular Push Pull Connectors

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
