Prct Description
RM-U Series Ultimate series IP68 waterproof Metal circular push pull connectors

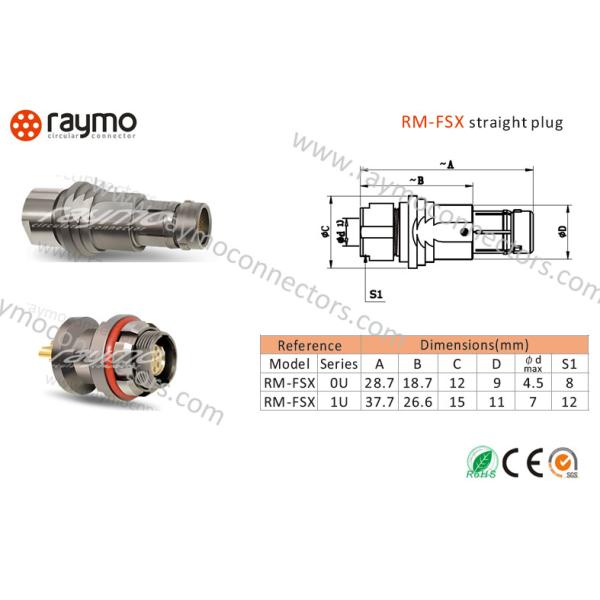

Part No.: | UP01L07M010SBK1 / RM-FSX-0U1S-P10JS52 |
Prct Description: | 0U(=07) size cable mount push pull connector, FSX model plug, 10pin male contact, code 1, gun-color chrome plated shell in brass |
Waterproof Push pull locking metal connector U-series connector, cable to cable connector, free socket, inline connector
| Main Futures |
| 1 | Secure high performance IP68 waterproof push-pull Self-locking system |
| 2 | can be 100% compatible with original connector |
| 3 | can be with different code, code 1,2,3 |
| 4 | 360 angle screening for full EMC shielding. |
| 5 | Available solder and PCB or right angle PCB contact. |
| 6 | can plated with white or black chrome. |
| 7 | SO:9001-2015, CE,RoHS2.0, SGS, Reach |
| Technical Characteristics |
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144 hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 95 dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating | IP 68 | Endurance(shell) | ≥5000 mating cycles |
| Shell size | Contacts no. (Both with Solder & PCB type) |
| 0U(=07) | 2 | 3 | 4 | 5 | 7 | 9 | 10 | 13 | | | |
| 1U(=08) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | |
Our Company
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.
Our Exhibition
| 2020.11 | Electronica Munich, Germany |
| 2019 9.24-9.26 | Testing Expo, Shanghai |
| 2018 11.12-11.15 | Electronica Munich, Germany |
| 2017 9.11-9.16 | NAB Show,Netherlands |
| 2016 4.11-4.15 | HK Fair |
| 2015 10.2-10.7 | ICEEB, Brasil |
| 2014 10.11-10.15 | HK Fair |
| 2014 4.11-4.15 | HK Fair |
Why Choose US?
1. Free sample?
Raymo: Available. Any needs, please contact us.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
4. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.
Our factory is SGS audited manufacturer and served global customers for more than 9 years.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
